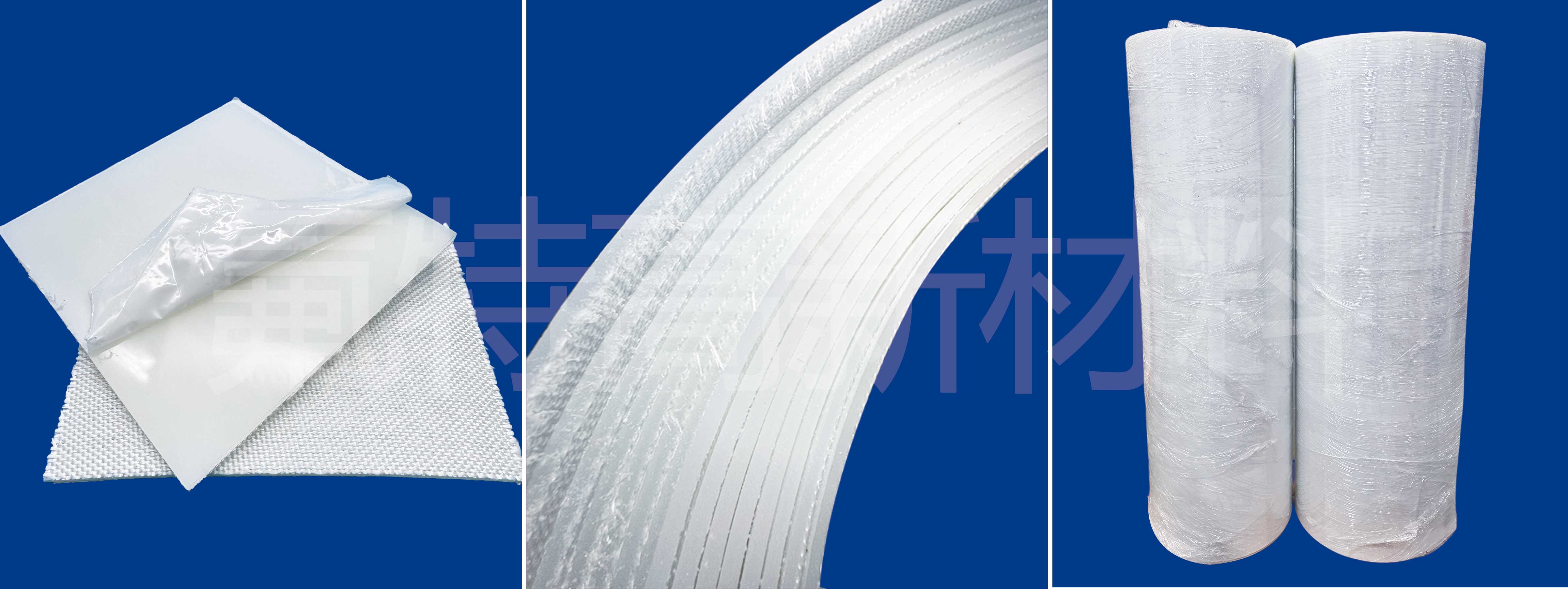

Fabric Backed PVDF Sheet / 玻纖背襯 PVDF 板材

PVDF glass fiber backed sheet is hot-pressed composite of anti-corrosion PVDF facing and glass fiber reinforced base. Premium lining for chemical anti-corrosion, environmental facilities and hydrometallurgy.

玻纖背襯 PVDF 板材，係由耐腐蝕 PVDF 面層與玻璃纖維強化基材透過熱壓一體複合而成，為化工防腐、環保設備、濕式冶金專用高階內襯材料。

It combines PVDF’s superior chemical resistance with high tensile strength of fiberglass, eliminating delamination, bulging, leakage and poor strength of ordinary plastic lining. Ideal for long-term service of extraction tanks, reactors, acid & alkali tanks and pickling vessels.

產品兼具 PVDF 絕佳耐化學藥品性與玻璃纖維高拉伸強度，可改善傳統塑膠內襯容易分層、鼓包、滲漏、結構強度不足等缺失，適用於萃取槽、反應釜、酸鹼儲槽、酸洗槽等設備長期使用。

Core Performance Advantages / 核心性能優勢

 1.Superior Chemical Resistance for Severe Corrosive Conditions Resist long-term immersion of pH 1–14 strong acids & alkalis, strong oxidants (nitric acid, hydrogen peroxide) and organic extractants (P204, P507) without swelling, degradation or permeation. Working temperature: -40℃~125℃, no deformation or peeling under high temperature, outperforming PP, PE and standard PVDF sheets.

可長期浸泡於 pH 值 1–14 強酸強鹼、強氧化劑（硝酸、雙氧水）與有機萃取劑（P204、P507），不會發生膨脹、劣化、滲透等問題。使用溫度範圍：-40℃～125℃，高溫環境下不變形、不剝落，整體性能優於 PP、PE 及一般 PVDF 板材。

 2. Fiberglass Reinforcement for Enhanced Structural Strength Fiberglass substrate greatly improves rigidity, impact resistance and anti-creep property with tensile strength raised by 200%–400%. Resist liquid erosion, mechanical vibration and heavy load, no cracking, deformation or embrittlement during long service.

玻璃纖維底層有效提升板材剛性、耐衝擊性與抗潛變特性，拉伸強度提升 200%–400%。

可耐受液體沖刷、機械震動與重載荷，長期使用不易龜裂、變形、脆化。

 3. Stable Composite Structure to Avoid Leakage & Delamination Patented hot-press bonding with peel strength ≥6N/cm, much higher than regular PVDF. Hot-air fusion welding enables seamless integral joint equal to base material, eliminating medium leakage, lining bulging and delamination.

採專利熱壓貼合工藝，剝離強度≥6 牛頓 / 公分，遠優於普通 PVDF 板材。

可透過熱熔焊施工，接縫一體無縫、強度等同母材，徹底避免介質滲漏、內襯鼓包、層間分離等狀況

 4. High Purity Without Medium Contamination Made of virgin imported PVDF resin with no impurity or heavy metal precipitation, suitable for production & storage of high-purity rare earth, nickel-cobalt-lithium and pharmaceutical intermediates to guarantee material purity and extraction efficiency.

採進口全新料 PVDF 樹脂製造，無雜質、無重金屬析出，適用高純稀土、鎳鈷鋰原料與醫藥中間體的生產、儲存作業，確保物料純度與萃取效率。

 5. Low Surface Adhesion for Easy Maintenance & Cost Saving Low surface energy prevents scaling and material adhesion to cut cleaning cost. On-site cutting, welding and partial repair available instead of full lining replacement, lowering maintenance expense by over 50%.

低表面能特性不易結垢、沾附物料，大幅降低清洗費用；現場可裁切、熱焊、局部修補，無需整組內襯更換，維護支出可減少 50% 以上

 6. Insulative & Flame Retardant for Safe Operation Excellent electrical insulation and high breakdown voltage; UL94 V-0 flame retardant (self-extinguishing after flame removal), compliant with explosion-proof chemical and high-purity semiconductor working conditions.

具優異電氣絕緣性、高耐擊穿電壓；阻燃等級 UL94 V-0（離火自熄），符合防爆化工、高純半導體廠房使用規範

Futegao Factory Strength 氟特高廠房實力

Futegao New Materials (Wuxi) Co., Ltd. is an original fluoroplastic manufacturer with over 10 years in fluoropolymer industry, supplying high-performance fluorine material solutions worldwide.

氟特高新材料（無錫）有限公司為氟塑原料原廠製造商，深耕氟高分子產業逾十年，面向全球提供高性能氟材料整體解決方案。

Production Capacity: 8,000 ㎡ modern workshop, 15 imported production lines, daily output over 10 tons, sufficient stock for 3–7 days quick delivery for bulk engineering orders.

佔地 8,000 平方公尺標準化生產廠房，配備 15 條進口生產產線，日產量 10 噸以上；常備充足庫存，大型工程訂單可 3–7 天快速出貨。

Raw Material & Process: Virgin premium PVDF + alkali-free fiberglass, proprietary hot-press craft with molecular weight retention ≥95%; COA and corrosion test reports available per batch.

採用高規全新 PVDF 原料搭配無鹼玻璃纖維，自有專利熱壓複合工藝，樹脂分子量保留率達 95% 以上；每批產品皆可提供材質證明書 (COA) 與耐腐蝕測試報告。

Customization: Thickness 3–20mm, max width 1.7m, customizable length for non-standard tank lining.

板材厚度可選 3–20mm，最大幅寬 1.7 公尺，長度依客戶非標儲槽內襯需求訂製。

QC & Service: ISO9001 certified with 16-step full inspection; free material selection, welding guidance and on-site technical support.

通過 ISO9001 品質認證，全流程 16 道檢驗工序；免費提供材質選型建議、焊接施工指導及現場技術支援。

 Market Reputation: Applied in hydrometallurgy, chemical anti-corrosion, environmental and semiconductor equipment, serving over 500 industrial clients with exports to Southeast Asia, Europe, Middle East.

產品廣泛應用於濕式冶金、化工防腐、環保設備與半導體產業，服務超過 500 家工業客戶，外銷東南亞、歐洲、中東等地。

Typical Applications

 Hydrometallurgy: Rare earth extraction tanks, Ni-Co-Li extraction boxes, Cu-Zn extraction vessel lining

 Chemical Anti-corrosion: Acid/alkali storage tanks, neutralization towers, oxidation reactors, pickling tank lining

 Environmental Equipment: Plating tanks, wastewater tanks, hazardous waste liquid tank lining

 典型應用領域

 濕式冶金

稀土萃取槽、鎳鈷鋰萃取箱、銅鋅萃取設備內襯

化工防腐

酸鹼儲槽、中和塔、氧化反應釜、酸洗槽內襯

 環保設備

電鍍槽、廢水儲槽、危險廢液儲槽內襯
